On-metal UHF RFID label M9817 / 98x17mm

On-metal UHF RFID label M9817 / 98x17mm
Minimum 500pcs
-
+
Request unit price

We react on your
request in 24 hours

Shipping
worldwide

Printing &
encoding

  • Read Range: up to 4m (13.1ft)
  • Frequency: 860-960 MHz
  • Chip type: UCODE®
  • Surface: Metallic,
  • Key application: Logistics, Warehouse,
Have questions about this product? ☎  +358 44 922 7278

On-metal UHF RFID label M9817 / 98x17mm

On-metal UHF RFID label M9817 is a versatile all surface RFID label ideal for securing IT & Industrial assets such as cables, pipes, metallic cylinders, liquid bottles, electrical devices etc., particularly where label application width is limited.

Its slightly thicker label construction delivers up to 4 meters of reading range (depending on the reader), which is difficult to achieve from a narrow width label.

The M9817 is designed to be compatible with leading RFID enabled thermal transfer printers. Labels can be printed On-demand and be applied on flat & curved surfaces without affecting performance levels. Its high-performance permanent adhesive ensures strong adhesion.

A disposable layer between each RFID label ensures efficient Thermal transfer printing.

On-metal UHF RFID labels M9817 provides industry best compliance with constant & reliable readings. Weather resistant and suitable for outdoor applications.

Applications

  • Mount on Metal Applications
  • Logistics involving metal surfaces
  • Logistics of Liquid containers
  • IT and office assets tracking
  • Hospital assets tracking applications
  • Tools and kitchen assets tracking
SPECIFICATIONS
    PHYSICAL
  • Product:On-metal UHF RFID label M9817 / 98x17mm
  • Material:Printable white PET
  • Adhesive:High performance acrylic adhesive
  • Mounting Method:Self-adhesive

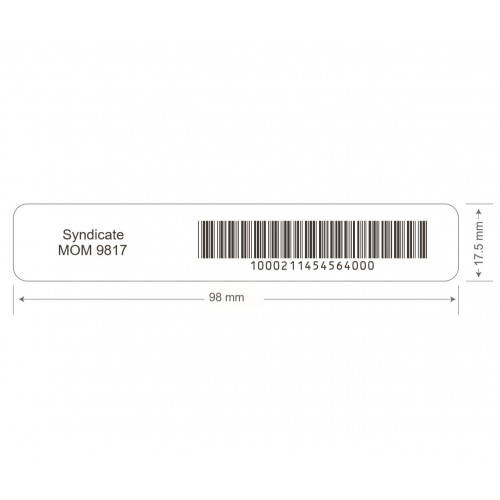

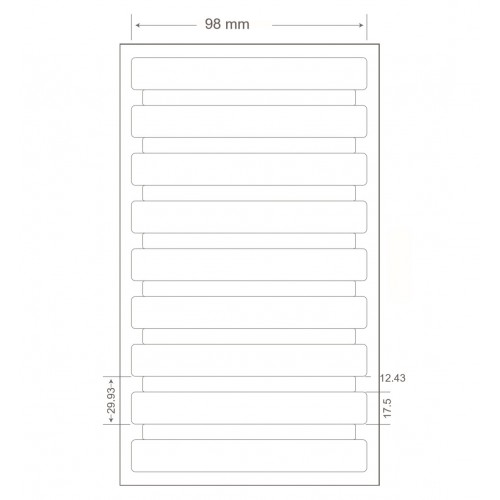

  • Dimensions:98 x 17.5 x 2.2 mm / 3.86 x 0.69 x 0.09 in
  • Weight:1 g
  • Surface : Metallic,
    TECHNICAL
  • Read Range:up to 4m (13.1ft)
  • Frequency:860-960 MHz
  • Chip type:UCODE®
  • Interface protocol:EPC Class 1 Gen2 ISO 18000-6C
  • Memory:EPC: 96-128 bits; User: 96 bits; Unique TID: 48 bits
    PERSONALIZATION
  • Customized printing:Customer specific layout including logo & text
  • Pre-encoding:Customer specific encoding of EPC
DELIVERY

We will deliver your order with a courier right to your door (or by any other means of choice) during 1-2 days after manufacturing. Well-established logistics system allows us to ship the products the very next day after the receipt of the application.

GUARANTEE

Depending on product the warranty and lifetime support period for the products is up to 2 years. The warranty of reliable operation at any condition is provided by timely technical support and qualified service.
