On-metal UHF RFID label M3520 / 35x20mm

Request unit price

We react on your
request in 24 hours

Shipping
worldwide

Printing &
encoding

Read Range: up to 9m
Frequency: 860-960 MHz
Chip type: UCODE®
Surface: Metallic,
Key application: Logistics, Warehouse,

Have questions about this product? ☎ +358 44 922 7278

An On-metal UHF label with small footprint & high read range

35 x 20 x 2.1 mm on-metal UHF RFID label M3520 is a fantastic solution for securing Healthcare, IT & Industrial assets. Despite being very small in size it manages to achieve up to 9m read range (depending on the reader). Its small size also makes it a good solution for application on objects, especially where label application width is limited.

On-metal UHF RFID label M3520 is designed to be compatible with leading RFID enabled thermal transfer printers. Its high performance permanent adhesive ensures strong adhesion. A disposable layer between each RFID label ensures efficient Thermal transfer printing. A label with all round performance that can be deployed across a wide range of industries.

Applications

Mount on Metal Applications
Logistics involving metal surfaces
Logistics of Liquid containers
IT and office assets tracking
Hospital assets tracking applications
Tools and kitchen assets tracking

SPECIFICATIONS

PHYSICAL

Product:On-metal UHF RFID label M3520
Material:Printable white PET
Adhesive:High performance acrylic adhesive

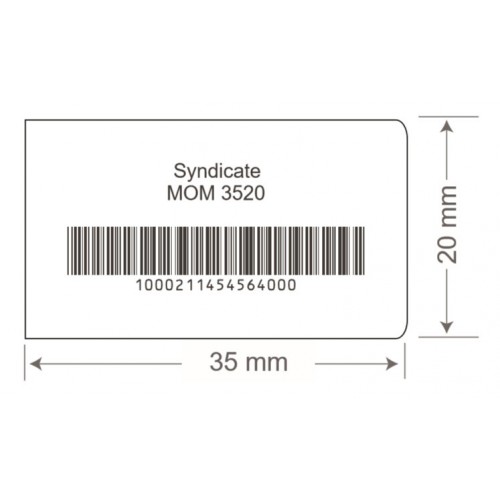

Dimensions:35 x 20 x 2.1 mm / 1.37 x 0.78 x 0.003 in
Weight:0.38
Surface : Metallic,

TECHNICAL

Read Range:up to 9m
Frequency:860-960 MHz
Chip type:UCODE®
Interface protocol:EPC Class 1 Gen2 ISO 18000-6C
Memory:EPC - 96bits (up to 128bits); User - 512bits; Unique TID - 64bits
Data storage time:Up to 20 years
Regulatory:RoHS, CE

ENVIRONMENT

IP Protection:IP68
Operating temperature:-20°C to +85°C / -4°F to +185°F
Storage temperature:+23°C / 50% RH

PERSONALIZATION

Customized printing:Customer specific layout including logo & text
Pre-encoding:Customer specific encoding of EPC

DELIVERY

We will deliver your order with a courier right to your door (or by any other means of choice) during 1-2 days after manufacturing. Well-established logistics system allows us to ship the products the very next day after the receipt of the application.

GUARANTEE

Depending on product the warranty and lifetime support period for the products is up to 2 years. The warranty of reliable operation at any condition is provided by timely technical support and qualified service.

Samples & Price Request

Leave your request and our consultant will contact you within 24 hours to assist you in your choice. As a result you will receive an offer with price, production and delivery time, as well as availability of samples for testing.

Production

After the approval of commercial offer, we will start manufacturing process, this usually takes 10-20 working days, depending on product type and order volumes. If the products are available in stock they will be delivered within 3-5 working days.

Quality & Environment

We are environment friendly and quality conscious manufacturer. Our products comply with CE, RoHS, ISO9001, FCC, ATEX/IECEx, ISED.

Order Delivery

We will deliver your order with a courier right to your door (or by any other means of choice) during 4-5 working days after completion of manufacturing process.
