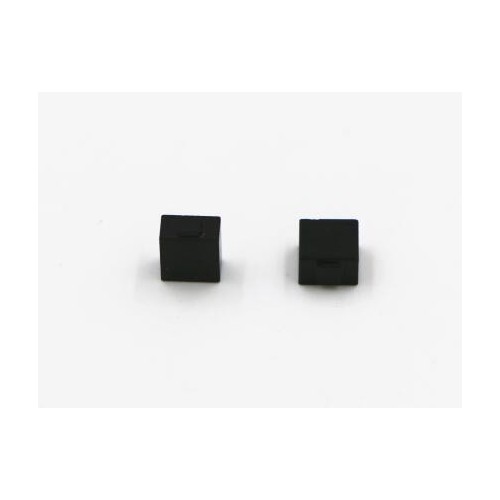

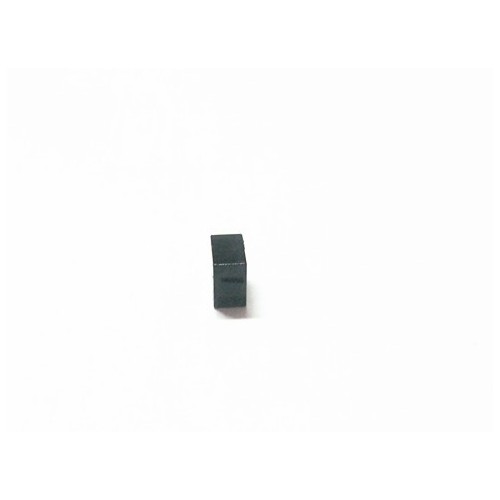

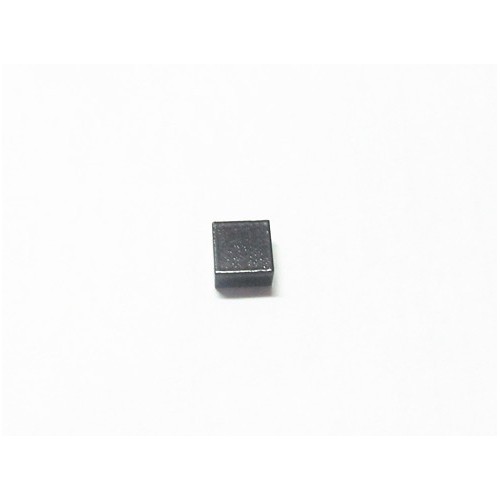

High Temperature Small size On-metal RFID tag RMT-6009 / 4.8x4.8mm

Request unit price

We react on your
request in 24 hours

Shipping
worldwide

Printing &
encoding

Read Range: up to 1m
Frequency: 860-960 MHz
Chip type: ALIEN Higgs®
Surface: Metallic,
Key application: Tools tracking,

Have questions about this product? ☎ +358 44 922 7278

Industrial small size on-metal RFID tags RMT-6009

Small size and high temperature resistant UHF on-metal RFID tag is designed on ceramic base material and capable of surviving cycling applications with temperatures to 150°C. It is compliant with EPC C1G2 (ISO18000-6C), mainly applied to tracking small tools, scalpels, small size equipment management, firearms management, weapons tracking, etc.

With its small form, high temperature capability and high performance, these RFID tags are ideally suited to tracking small metal assets such as:

Metal hand tools
Metal IT assets including covert tracking
Embedding into metal components
Autoclaves and high temperature sterilizations

SPECIFICATIONS

PHYSICAL

Product:Industrial Small size On-metal RFID tag RMT-6009
Material:Ceramic
Adhesive:Film adhesive (included); For placement only in applications exceeding +85°C
Dimensions:4.8 x 4.8 x 3 mm
Weight:0.7 g
Surface : Metallic,

TECHNICAL

Read Range:up to 1m
Frequency:860-960 MHz
Chip type:ALIEN Higgs®
Interface protocol:EPC Class 1 Gen2 ISO 18000-6C
Memory:EPC 96 bits; User 512bits; Unique TID 64bits
Data storage time:up to 10 years
Regulatory:RoHS

ENVIRONMENT

Relative humidity:98% Non-condensing
IP Protection:IP68
Peak temperature:+150°C / +302°F
Operating temperature:-40°C to +85°C / -40°F to +185°F

PERSONALIZATION

Pre-encoding:Customer specific encoding of EPC
