UHF RFID Bolt-Lock Three-state E-seal / SOTER SEAL

UHF RFID Bolt-Lock Three-state E-seal / SOTER SEAL
Minimum 1000pcs
-
+
Request unit price

We react on your
request in 24 hours

Shipping
worldwide

Printing &
encoding

  • Read Range: up to 5m
  • Frequency: 860-960 MHz
  • Chip type: NXP G2iL+
  • Key application: Logistics,
Have questions about this product? ☎  +358 44 922 7278

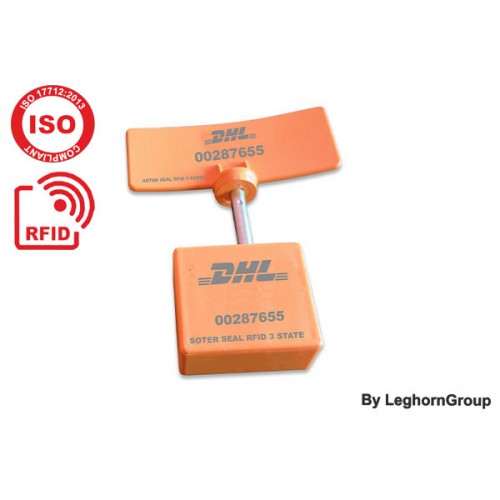

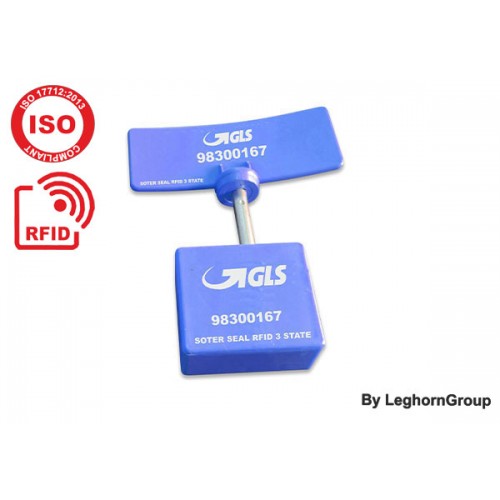

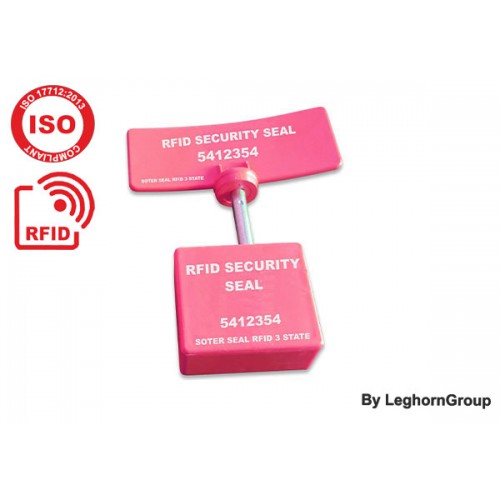

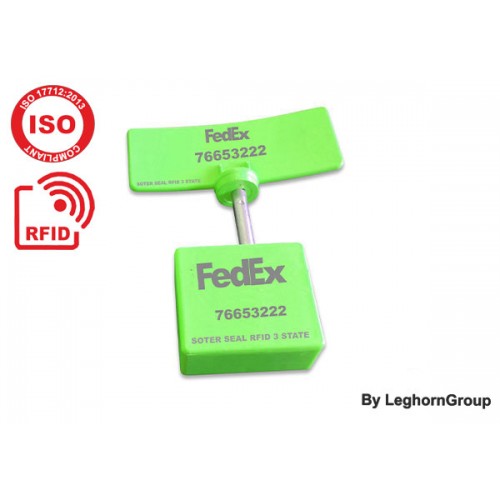

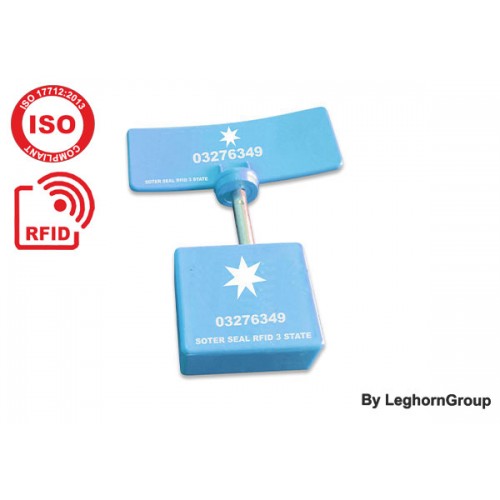

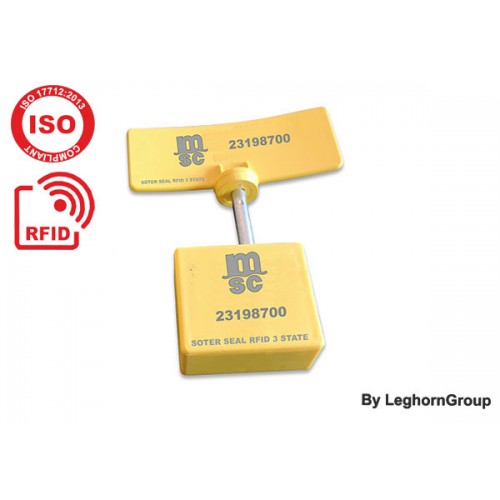

Tamper Evident Durable UHF RFID Bolt Lock Three-state E-seal / SOTER SEAL

Industry segments: Logistics, Tamper Evident and Security

Tamper Evident Durable UHF RFID Bolt Lock Three-state E-seal SOTER is UHF RFID bolt-lock seal, which can provide its status information, UNLOCKED, LOCKED or TAMPERED, which is stored in the RFID chip. Compliant with ISO 17712:2013.

UHF RFID Bolt Lock Three-state E-seal SOTER is a sturdy UHF RFID bolt-lock seal that combines high mechanical security with the electronic security offered by RFID, automatic radio frequency identification technology. It’s the first RFID bolt seal – compliant with ISO 17712 technical standards – available on the market that is able to provide its status information, UNLOCKED,  LOCKED OR TAMPERED, which is stored in the RFID chip. For this reason, the product has been named “three-state“.

The outer polypropylene plastic housing of the RFID bolt-lock seal – customizable with mark and numbering on request – embeds an unique and latest generation of electronic chip, that has its own univocal coding, which cannot be replicated. This allows for secure and reliable automatic identification of the RFID Bolt-Lock E-seal applied to the container or vehicle.

SPECIFICATIONS
    PHYSICAL
  • Product:UHF RFID Bolt-Lock Three-state E-seal / SOTER SEAL
  • Material:ABS

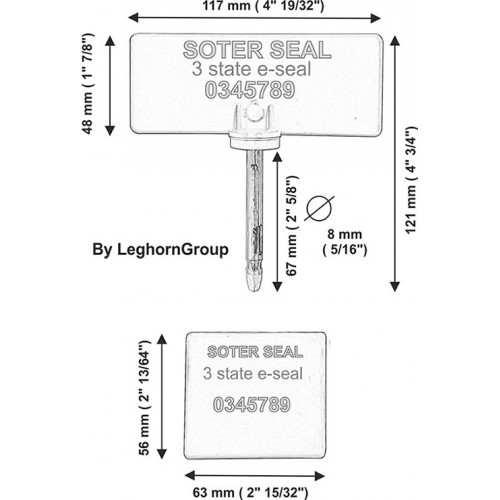

  • Dimensions:Metallic pin L67.0 x D8.0 mm; Bolt: 56.0 x 63.0 x 26.0 mm; Flag 48 x 117 x 4 mm
  • Weight:114.0 g
    TECHNICAL
  • Read Range:up to 5m
  • Frequency:860-960 MHz
  • Chip type:NXP G2iL+
  • Interface protocol:EPC Global Class 1 Gen 2 ISO 18000-63 Compliant, Gen 2v 2 Compliant
  • Data storage time:up to 20 years
  • Regulatory:ISO 17712:2013
    ENVIRONMENT
  • IP Protection:IP65
  • Operating temperature:-20°C to +55°C | -4°F to +130°F
  • Storage temperature:-40°C to +85°C / -40°F to +185°F
    PERSONALIZATION
  • Customized printing:Laser marking
DELIVERY

We will deliver your order with a courier right to your door (or by any other means of choice) during 1-2 days after manufacturing. Well-established logistics system allows us to ship the products the very next day after the receipt of the application.

GUARANTEE

Depending on product the warranty and lifetime support period for the products is up to 2 years. The warranty of reliable operation at any condition is provided by timely technical support and qualified service.
