High Temperature On-metal RFID hard tag Exo 400 HT / 37x14mm

Request unit price

We react on your
request in 24 hours

Shipping
worldwide

Printing &
encoding

Read Range: up to 4m (13.1ft)
Frequency: 860-960 MHz
Chip type: ALIEN Higgs®
Surface: Metallic,
Key application: Automotive paint processes, Healthcare,

Have questions about this product? ☎ +358 44 922 7278

High temperature On-metal RFID tag Exo 400 HT - Perfect RFID-tag for Rugged On-metal Applications Capable of Surviving up to 235°C (455°F)

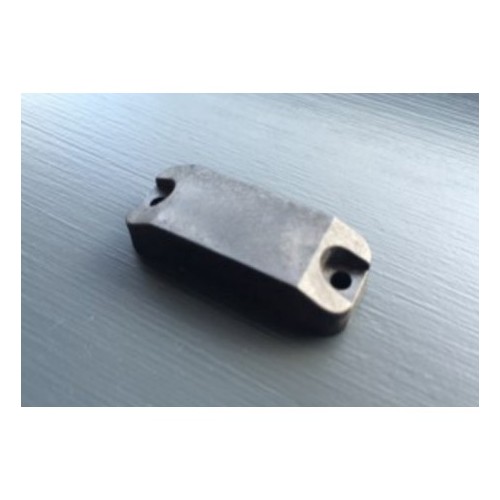

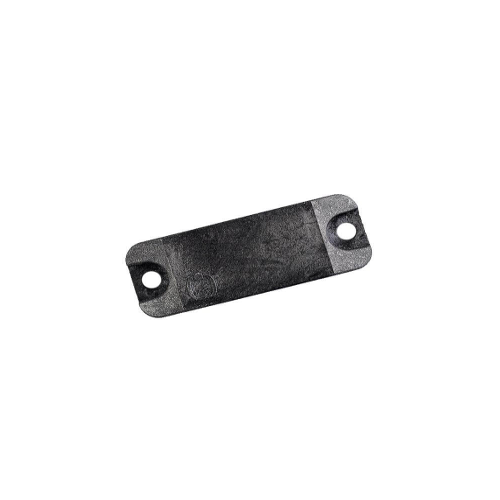

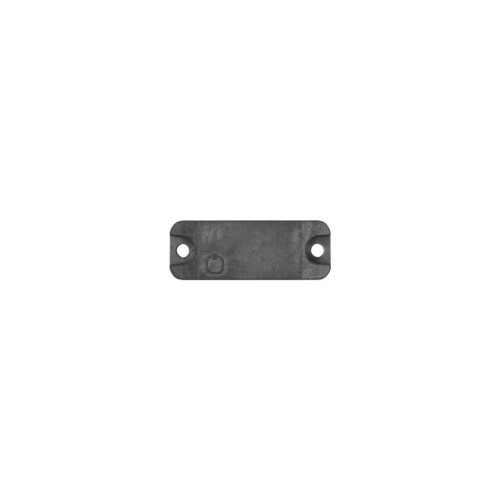

37 x 14 x 7.5 mm high temperature on-metal RFID tag Exo 400 HT is a small form factor high temperature resistant RFID hard tag optimized for metal substrates.

With a combined ability to survive high temperatures to 235°C and a rugged encapsulation, this high temperature RFID hard tag Exo 400 HT is ready for deployment in a variety of applications without sacrificing read range performance.

Product datasheet - High Temperature On-metal RFID hard tag Omni-ID Exo 400 HT

Applications

The Exo 400 HT high temperature on-metal RFID tag is an ideal solution for applications where surviving excessive heat in a rugged environment is needed such as:

Healthcare sterilization processes
Manufacturing
Automotive post-paint processes

SPECIFICATIONS

PHYSICAL

Product:On-metal RFID hard tag Exo 400 HT
Material:Thermoplastic cover
Mounting Method:Mechanical (std) 2 x Ø3mm holes
Dimensions:37 x 14 x 7.5 mm / 1.46 x 0.55 x 0.30 in
Weight:5.7
Surface : Metallic,

TECHNICAL

Read Range:up to 4m (13.1ft)
Frequency:860-960 MHz
Chip type:ALIEN Higgs®
Interface protocol:EPC Class 1 Gen2v2
Memory:EPC 96 bits; User 512bits; Unique TID 64bits
Regulatory:RoHS, CE, ATEX/IECEx (option) US&Canada

ENVIRONMENT

IP Protection:IP68
Peak temperature:+235°C / +455°F
Operating temperature:–20°C to +85°C / -4°F to +185°F

PERSONALIZATION

Pre-encoding:Customer specific encoding of EPC

DELIVERY

We will deliver your order with a courier right to your door (or by any other means of choice) during 1-2 days after manufacturing. Well-established logistics system allows us to ship the products the very next day after the receipt of the application.

GUARANTEE

Depending on product the warranty and lifetime support period for the products is up to 2 years. The warranty of reliable operation at any condition is provided by timely technical support and qualified service.

Samples & Price Request

Leave your request and our consultant will contact you within 24 hours to assist you in your choice. As a result you will receive an offer with price, production and delivery time, as well as availability of samples for testing.

Production

After the approval of commercial offer, we will start manufacturing process, this usually takes 10-20 working days, depending on product type and order volumes. If the products are available in stock they will be delivered within 3-5 working days.

Quality & Environment

We are environment friendly and quality conscious manufacturer. Our products comply with CE, RoHS, ISO9001, FCC, ATEX/IECEx, ISED.
