Industry segments: Apparel & Fashion, Logistics
AD-370u7 inlays from Avery Dennison Smartrac are designed for tagging a broad range of retail items, particularly apparel. They are also well suited for applications related to supply chain, inventory and logistics.

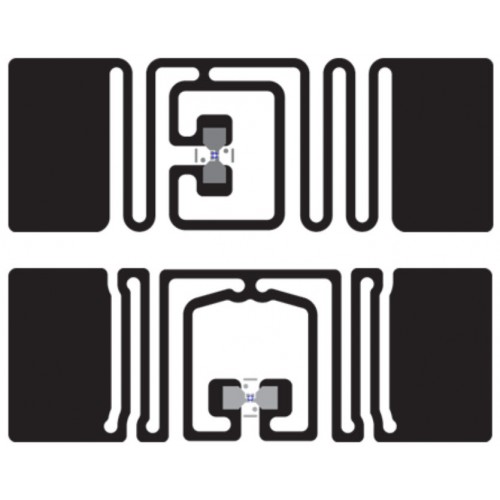

Built for the UHF frequency band, the AD-370u7 inlays feature a 53 x 19 mm antenna with global broadband performance (860-930 MHz) for reliable operation on a broad range of surfaces and materials.
AD-370u7 inlays are equipped with a UCODE 7 ICs from NXP, featuring 128 bits of EPC memory and 96-bit TID memory, with a 48 bit unique serial number factory-encoded. The product is also available in narrow-edge leading (NEL) format. Delivery formats include Dry Inlay, Wet Inlay and Pressure Sensitive Label.
Like all RFID products from Avery Dennison Smartrac, AD-370u7 inlays are manufactured according to the industry's highest quality standards, as confirmed by the RFID Lab at Auburn University: The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.
Product datasheet of UHF RFID inlay AD-370u7
| Part Number | 600902 | 600740 | 100357 |
| Format | Dry Inlay | Wet Inlay | Label |
| Antenna dimensions | 2.87 x 0.748 in [53 x 19 mm] | 2.87 x 0.748 in [53 x 19 mm] | 2.87 x 0.748 in [53 x 19 mm] |
| Die-cut dimensions | N/A | 2.205 x 0.866 in [56 x 22 mm] | 2.25 x 1.0 in [57.15 x 25.4 mm] |
| Inlay substrate material | 40# DC Paper | 40# DC Paper | 40# SC Paper |
| Inlay-to-liner adhesive | N/A | Permanent | Permanent |
| Liner material | N/A | Glassine | Glassine |
| Face sheet | N/A | N/A | 55# TT2C Bright White |
| Standard pitch | 1.0 in [25.4 mm] | 1.0 in [25.4 mm] | 1.5 in [38.1 mm] |
| Standard web width | 2.0 in [50.8 mm] | 2.0 in [50.8 mm] | 2.0 in [50.8 mm] |
| Total thickness over chip | 10.6-12.6 mils [268-319 microns] | 12.1-14.1 mils [306-357 microns] | 15.9-17.9 mils [405-456 microns] |
| RoHS | EU Directive 2011/65 EU Compliant | EU Directive 2011/65 EU Compliant | EU Directive 2011/65 EU Compliant |
| Quality assurance | 100% read tested with out –of-tolerance inlay marked | 100% read tested with out –of-tolerance inlay marked | 100% read tested with out –of-tolerance inlay marked |
| Un-wind direction | Inlay-side out | PS Inlay-side out | Label-side out |
| Core size with adaptor insert |
3 in [76.2 mm] | 3 in [76.2 mm] | 3 in [76.2 mm] |
| Maximum roll outer diameter (not to exceed) |
13 in [330.2 mm] | 17 in [431.8 mm] | 8.0 in [390.5 mm] |
| Average # of units per roll |
30,000 good +/- 10% | 17,500 good +/- 10% | 3,319 good +/- 10% |
