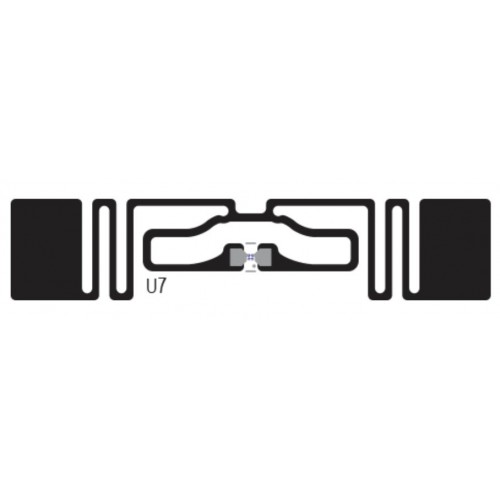

UHF RFID inlay AD-236u7 / 73x17mm

Request unit price

We react on your
request in 24 hours

Shipping
worldwide

Printing &
encoding

Read Range: up to 10m
Frequency: 860-960 MHz
Chip type: UCODE®
Surface : Non-metallic,
Key application : Apparel, Logistics, Supply Chain,

Have questions about this product? ☎ +358 44 922 7278

High performance on a multitude of items

Industry segments: Logistics, Apparel and Fashion

EPC Class 1 Gen 2 UHF RFID inlays AD-236u7 in size 73x17mm are high performing Gen2 UHF RFID products that fully leverage the capabilities of NXP’s UCODE 7 IC.

The product is suitable for a wide variety of RFID tagging applications, including Supply Chain, Inventory & Logistics, Apparel and Home Essentials.

AD-236u7 inlays are equipped with a UCODE 7 ICs from NXP, featuring 128 bits of EPC memory and a 96-bit unique serialized TID Number. Available delivery formats comprise Dry Inlay, Wet Inlay and Pressure Sensitive Label.

SPECIFICATIONS

PHYSICAL

Product:UHF RFID inlay AD-236u7 / 73x17mm
Material:PET
Dimensions:73 x 17 mm / 2.87 x 0.67 in
Surface : Non-metallic,

TECHNICAL

Read Range:up to 10m
Frequency:860-960 MHz
Chip type:UCODE®
Interface protocol:EPC Class 1 Gen2 ISO 18000-6C
Memory:EPC - 128bits/96bits; Unique TID - 96bits/48bits
Regulatory:RoHS EU Directive 2011/65/EU Compliant

ENVIRONMENT

Operating temperature:-40 to +85°C / -40 to 185 F
