ZENNER LoRaWAN Smoke Detector DIN EN 14604

Request unit price

We react on your
request in 24 hours

Shipping
worldwide

Printing &
encoding

Frequency: 868 MHz
RF type: LoRaWAN® 1.0.3
Key application : Facilities management,

Have questions about this product? ☎ +358 10 20 80 750

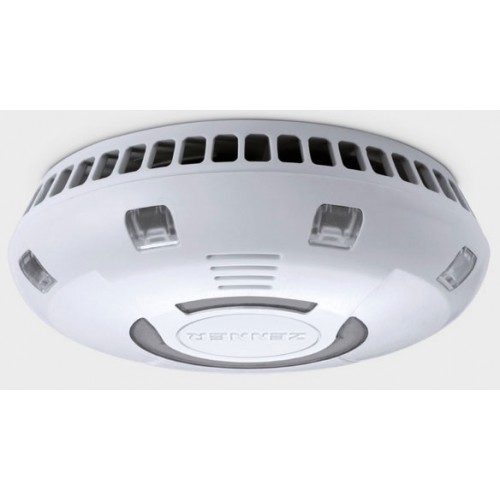

ZENNER LoRaWAN Smoke Alarm Detector - Certified DIN EN 14604

Applications: Facilities management

The ZENNER LoRaWAN Smoke Alarm Detector smoke alarm was specially developed for use in radio remote reading systems and offers optimum protection. The annual remote inspec- tion via radio saves the annual on-site appointment.

The ZENNER LoRaWAN Smoke Alarm detector innovative environment monitoring detects objects located within a radius of up to at least 50 cm.

Performance characteristics of LoRaWAN Smoke Alarm Detector

Optical detection technology with additional thermo- sensor for early detection of fire smoke
Built-in, non-removable long-life battery with a service life of 10 years

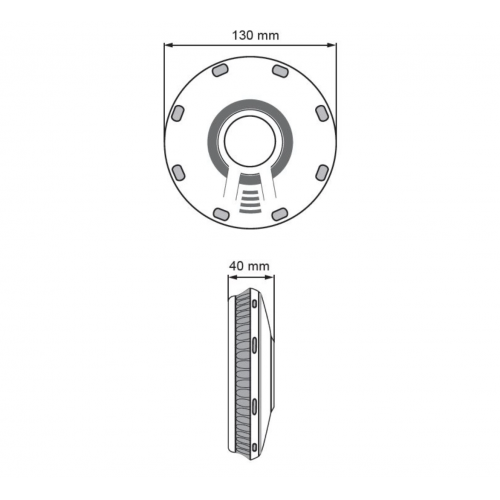

Modern design 130 mm in diameter and 40 mm in depth
Test button for muting false alarms and suppressing non-safety-relevant acoustic error messages for up to 65 hours
Loud alarm with min. 85 dB (A)
Event log with all key equipment parameters
Self-monitoring with error signal
“Night-time reduction” to lower LED brightness and postpone error messages not relevant to safety; however, error readouts after 24 hours at the latest
Field of application according to application standard DIN 14676 and approved according to device standard EN 14604
CE certified to comply with the Construction Products Directive
LoRaWAN®radio interface for remote inspection
Comfort function: event-based LoRaWAN telegram when smoke is detected can be activated via downlink (from FW version 2.20)

Approvals

Approved for the field of application in accordance with DIN 14676 application standard which regulates the planning, installation, operation and maintenance of the smoke alarm
Approved in accordance with DIN EN 14604:2005/ AC:2008, tested and certified by independent testing in- stitute Kriwan Test Centre with the certification number 1772-CPR-170691
Awarded the quality label Q, the detector meets the requirements of vfdb-Directive 14-01 (type testing, manufacturing facility monitoring according to AVCP system).

Product datasheet - ZENNER LoRaWAN Smoke Alarm Detector

SPECIFICATIONS

PHYSICAL

Product:ZENNER Smoke Detector Easy
Mounting Method:Screws
Dimensions:130 x 40 mm

TECHNICAL

Frequency:868 MHz
RF type:LoRaWAN® 1.0.3
Regulatory:DIN EN 14604
