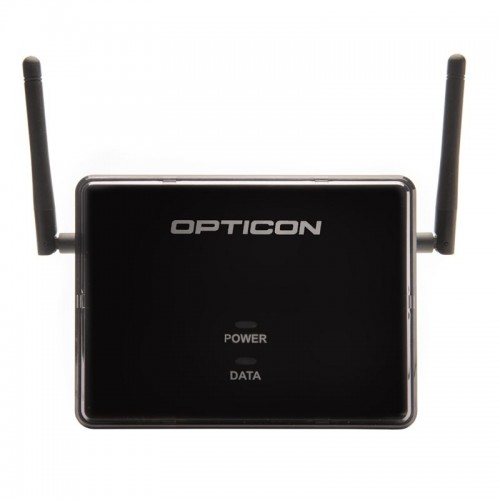

ESL Base Station / EBS-40

ESL Base Station / EBS-40
Minimum 1pcs
-
+
Request unit price

We react on your
request in 24 hours

Shipping
worldwide

Printing &
encoding

  • Read Range: up to 100m
  • Frequency: 2.4 GHz
Have questions about this product? ☎  +358 10 20 80 750

From small retail to multi-store business, implementation of the base station is very simple. All e-paper labels are connected to the same network and content management system, which is connected to the back office system. One base station can load 2,500 ESLs per station and has a 25-meter indoor radius (100 meters open-field). For complete specifications, see the datasheet.

The base station provides a connection between the Electronic Shelf Label server and the Electronic Shelf labels so you can easily update them whenever you want.

SPECIFICATIONS
    PHYSICAL
  • Product:ESL Base Station / EBS-40
  • Weight:250 g / 8.8 oz (incl. antennas)
    TECHNICAL
  • Read Range:up to 100m
  • Frequency:2.4 GHz
  • CPU:Cortex M4 32-bit MCU
  • Power:Min. 4.5V, Max 6.6V 200 mA
  • Memory:Internal flashrom: 512 kB | Internal RAM: 256 KB | External RAM: 8 MB
  • Regulatory:FCC, RoHS, EN60950-1, IEC60950-1, EN55022, EN55024, CE, REACh, Anatel
  • Additional:IEEE 802.15.4 based
    ENVIRONMENT
  • Relative humidity:20 - 85% (non-condensing)
  • Operating temperature:-10 to 50 °C / 14 to 122 °F
  • Storage temperature:-20 to 60 °C / -4 to 140 °F
DELIVERY

We will deliver your order with a courier right to your door (or by any other means of choice) during 1-2 days after manufacturing. Well-established logistics system allows us to ship the products the very next day after the receipt of the application.

GUARANTEE

Depending on product the warranty and lifetime support period for the products is up to 2 years. The warranty of reliable operation at any condition is provided by timely technical support and qualified service.
