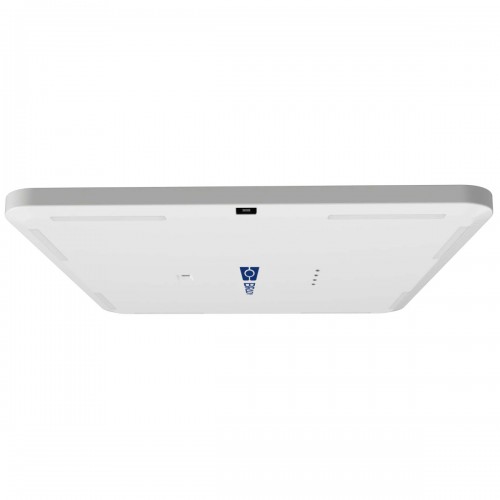

Brady BFA RFID Antenna for FR22 Fixed RFID Reader

Request unit price

We react on your
request in 24 hours

Shipping
worldwide

Printing &
encoding

Frequency: 860-960 MHz
Key application : Inventory, Access control,

Have questions about this product? ☎ +358 44 922 7278

Brady BFA RFID Antenna for FR22 Fixed RFID Reader - Suitable with Axzone Magnus®-S3 M3D chip for temperature sensing application

BRADY BFA is an advanced beam-forming overhead antenna with 28 software-controlled beams and an integrated movement and direction detection sensor.

All the beams can be enabled for the highest RFID reading coverage and accuracy, or only specific beams can be enabled to define a limited area of detection and reduce unwanted readings.

BRADY FR22 can be seamlessly connected and mounted on the back.

Highlights of Brady RFID Antenna for FR22 Fixed RFID Reader

28 software controlled antenna beams to provide multiple coverage shapes for different use cases or environments.
High read accuracy due to multiple overlapping beams.
Reliable object direction detection and environment mapping.
Integrated loud buzzer and high visibility LEDs to provide user indications in track & trace and access control applications.
VESA standard mounting

SPECIFICATIONS

PHYSICAL

Product:BRADY BFA
Dimensions:430,95 mm (W) x 430,95 mm (H) x 21,10 mm (D)
Weight:860 g

TECHNICAL

Frequency:860-960 MHz
Supported standard:UHF EPC Gen 2 V2.0 / ISO 18000-6C
Signals & indicators:8 high visibility LED bars, Buzzer for sound indications
Antenna:Max gain 8 dBi, Beam Width 40° / 60°

ENVIRONMENT

IP Protection:IP20, for indoor use only
Operating temperature:-20°C to +55°C | -4°F to +130°F
Storage temperature:-40°C to +85°C / -40°F to +185°F

DELIVERY

We will deliver your order with a courier right to your door (or by any other means of choice) during 1-2 days after manufacturing. Well-established logistics system allows us to ship the products the very next day after the receipt of the application.

GUARANTEE

Depending on product the warranty and lifetime support period for the products is up to 2 years. The warranty of reliable operation at any condition is provided by timely technical support and qualified service.

Samples & Price Request

Leave your request and our consultant will contact you within 24 hours to assist you in your choice. As a result you will receive an offer with price, production and delivery time, as well as availability of samples for testing.

Production

After the approval of commercial offer, we will start manufacturing process, this usually takes 10-20 working days, depending on product type and order volumes. If the products are available in stock they will be delivered within 3-5 working days.

Quality & Environment

We are environment friendly and quality conscious manufacturer. Our products comply with CE, RoHS, ISO9001, FCC, ATEX/IECEx, ISED.

Order Delivery

We will deliver your order with a courier right to your door (or by any other means of choice) during 4-5 working days after completion of manufacturing process.
