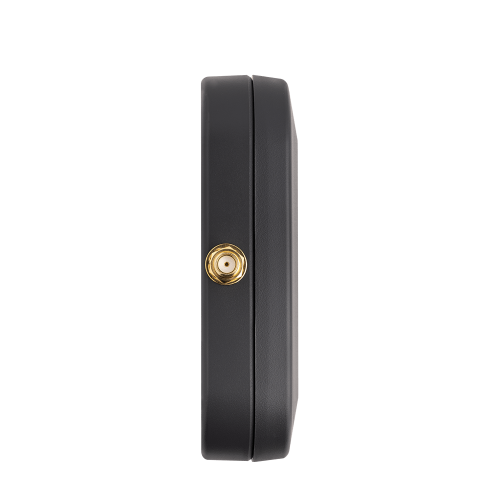

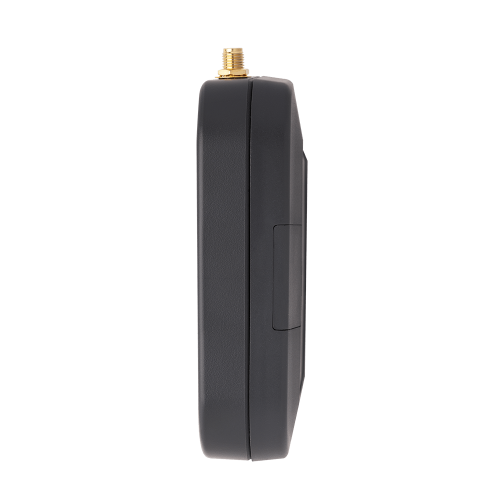

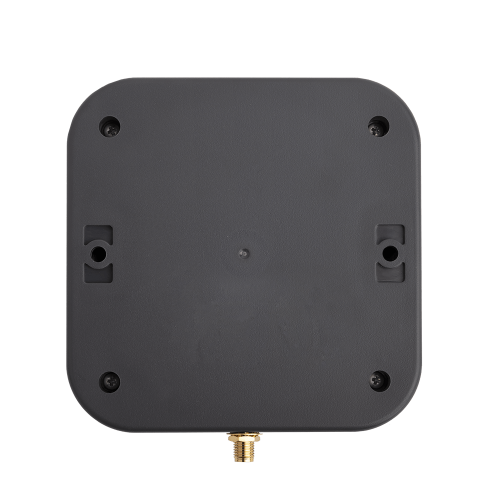

CAEN RFID QUAD Circular Polarized Compact Antenna – FCC

CAEN RFID QUAD Circular Polarized Compact Antenna – FCC
Minimum 1pcs
Request unit price

We react on your
request in 24 hours


Printing &

  • Frequency: 860-960 MHz
  • Key application : Waste management, Asset Tracking,
Have questions about this product? ☎  +358 10 20 80 750

CAEN RFID - QUAD Circular Polarized Compact Antenna ETSI

Applications: RAIN RFID portal for logistic, Industrial automation reading points, RAIN RFID tunnels, Access control reading points

The CAEN RFID QuadIP is a medium-short range RAIN RFID antenna in a compact and robust form factor. The QuadIP antenna is well suited for building small RFID gates, read point for access control or to be installed on conveyors in industrial environments.

The high IP rating (IP67) permits to install the QuadIP antenna for outdoor solution or in harsh environments.

Thanks to the circular polarization, the reading range is not affected by the tag orientation.


  • Designed for RAIN RFID portable applications
  • IP67
  • 902 - 928 MHz
  • 0.2dBi gain
  • Circular Polarization

Download product data sheet of CAEN RFID QUAD Circular Polarized Compact Antenna FCC

  • Product:QuadIP WANT021IP
  • Dimensions:100 x 100 x 25 mm / 3.94 x 3.94 x 0.98 in
  • Weight:140 g
  • Frequency:860-960 MHz
  • Operating frequency:902-928 MHz (FCC part 15.247)
  • Polarization:Right Hand Circularly Polarized (RHCP)
  • IP Protection:IP67
  • Operating temperature:-25 °C to +70 °C / -13 °F to 158 °F

We will deliver your order with a courier right to your door (or by any other means of choice) during 1-2 days after manufacturing. Well-established logistics system allows us to ship the products the very next day after the receipt of the application.


Depending on product the warranty and lifetime support period for the products is up to 2 years. The warranty of reliable operation at any condition is provided by timely technical support and qualified service.
