Wireless Handheld 1D Barcode Scanner / OPC-3301i

Request unit price

We react on your
request in 24 hours

Shipping
worldwide

Printing &
encoding

Key application : Warehouse, Logistics, Retail,

Have questions about this product? ☎ +358 10 20 80 750

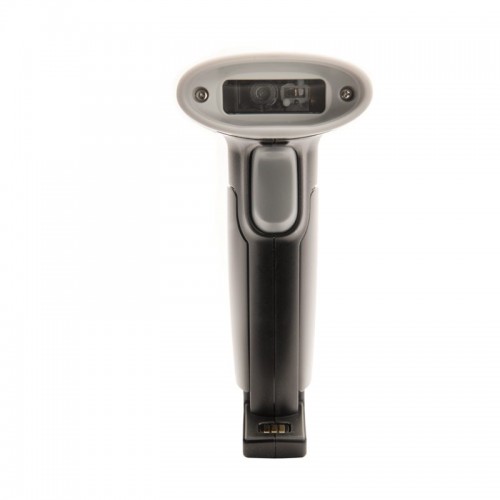

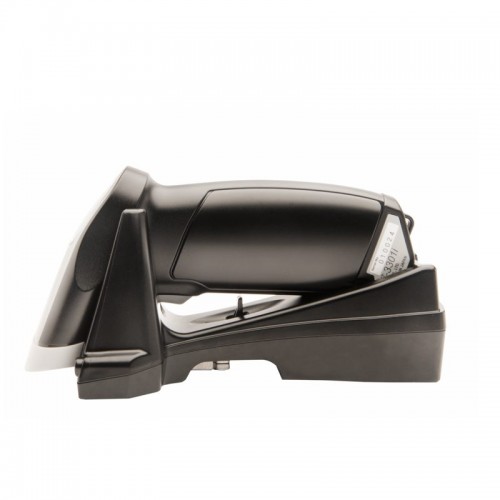

Wireless Handheld Barcode Scanner OPC-3301i

The OPC-3301i is a compact wireless handheld CCD 1D barcode scanner that uses Bluetooth for real-time data transfer. It is easy to use and makes the user mobile while scanning. It can be connected to any Apple product due to the MFi certification. The OPC-3301i is a CCD scanner well worth its name.

Applications

This product is used in service environments, kiosks, store counters, warehouses, administrative services or tasks and retail. The OPC-3301i has a modern classic and clean look that fits perfectly on a counter or desk where no cables are desired. The CCD is more resistant to breaking since it has no oscillating mirrors.

Features

1D Scanning
Bluetooth connection
Lightweight
Plug and play

SPECIFICATIONS

PHYSICAL

Product:Wireless Handheld 1D Barcode Scanner OPC-3301i
Dimensions:113 x 132 x 56 mm / 4.45 x 5.20 x 2.20 in
Weight:127 g (incl. battery)

TECHNICAL

CPU:32-bit
Battery:Lithium-Ion 3.7V 1100 mAh | Standby time: Aprox. 72 hours (with wireless connection)
Signals & indicators:Visual: 2 LED, 1 (red/green), 1 (blue) | Non-visual: buzzer
Communication:Bluetooth: Ver. 2.1, SPP/HID, output power class 2, range up to 10 m
Power:15 mA (standby), max 200 mA
Charging:Separate cradle CHG-3201 / CRD-3301B
1D laser scanner:Supports all types of 1D barcodes
Memory:Flashrom: 1 MB | RAM: 95 Kbyte
Regulatory:CE, FCC, VCCI, MFi, RoHS, IEC62471-1, IEC60950-1, EN60950-1, EN55022 etc.

ENVIRONMENT

Relative humidity:20% to 85% (non-condensing)
IP Protection:IP42
Drop & impact resistance:1.5 m / 5 ft drop onto concrete surface | Vibration test: 10 - 100 Hz with 2G for 1 hour
Operating temperature:0 to 50 °C / 32 to 122 °F
Storage temperature:-20 to 60 °C / -4 to 140 °F
