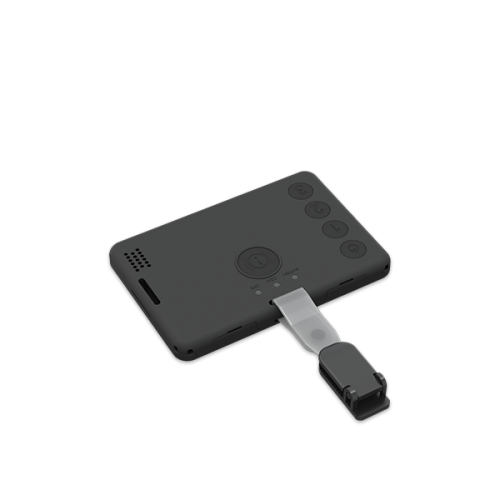

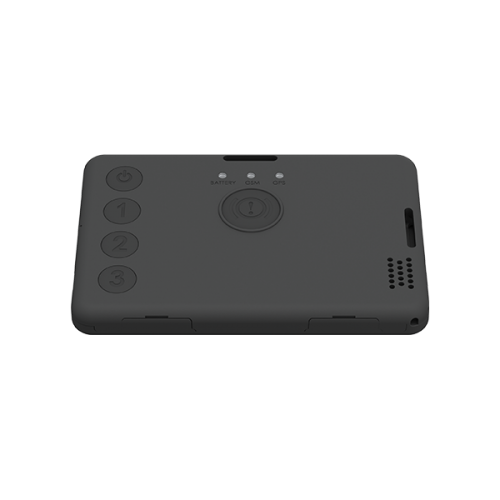

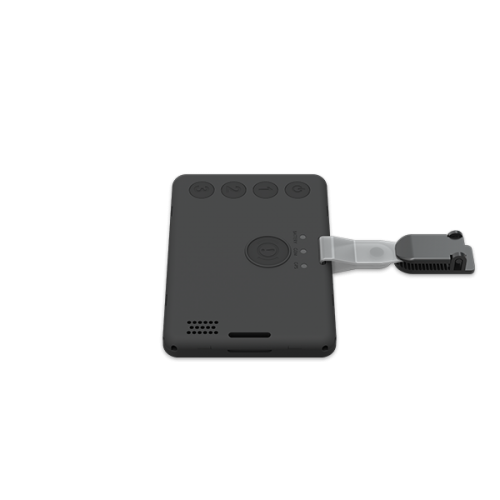

Teltonika personal GPS/GNSS tracker - Worker Badge Plus

Applications: Healthcare, Personnel Monitoring, Construction Site

Teltonika GPS personal tracker Worker Badge Plus (GH5200) is an autonomous personal tracker with GNSS, GSM and Bluetooth connectivity. GPS tracker is designed for everyone who performs activity without close or direct supervision of others: for example healthcare visitors, maintenance workers, lone workers or employees working out of standard working hours.

The GPS tracker offers high quality voice communication, programmable LED indications and 1050mAh battery to meet latest legislation for lone workers safety and protection.

Product datasheet - GPS personal tracker Worker Badge Plus

Key Features

Two-way voice communication
Slim design for comfortable everyday use
Bluetooth for external devices and Low Energy sensors
Man-Down, Alarm & No Movement scenarios
5 configurable buttons
Up to 5 Call/SMS recipients in case of emergency event

SPECIFICATIONS

PHYSICAL

Product:Worker Badge Plus (GH5200)

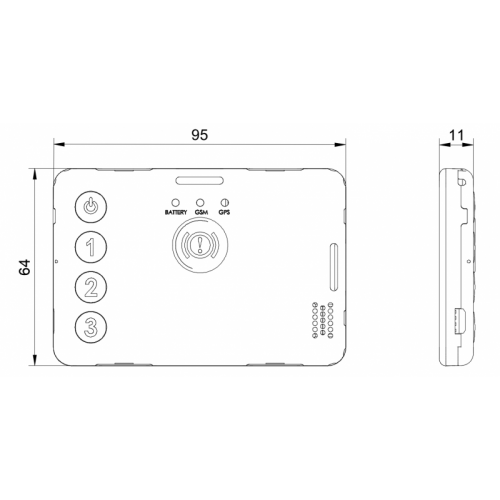

Dimensions:95 x 64 x 11 mm
Weight:80 g

TECHNICAL

Battery:1050 mAh Li-Ion battery
Signals & indicators:3x LED indicators
Charging:5V DC with over-voltage protection
Antenna:GNSS antenna (Internal High Gain), Cellular antenna (Internal High Gain)
Module:Teltonika TM2500
Technology:GSM, GPRS, GNSS, Bluetooth (4.0 + LE)
GNSS:GPS, GLONASS, GALILEO, BEIDOU,SBAS, QZSS, DGPS
Memory:128 MB internal flash memory
Sensors:Integrated Accelerometer
Additional:5x Configurable buttons, 2.0 micro-USB, Micro-SIM, eSIM possibility

ENVIRONMENT

Relative humidity:0 - 80% non-condensing
IP Protection:IP30
Operating temperature:-20°C to +60°C / -4°F to +140°F
Storage temperature:-20 °C to +60°C for 1 month; -5 °C to +30°C for 6 months
