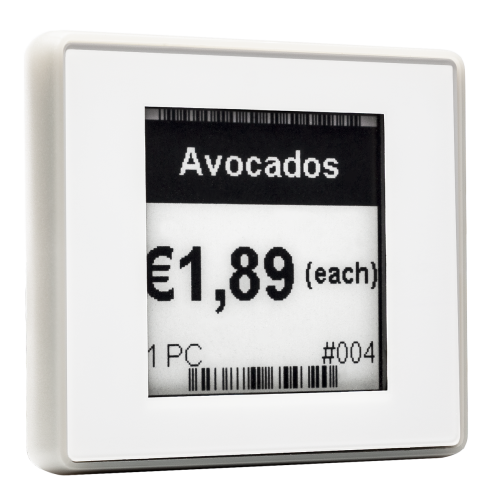

1.5" Electronic Shelf Label (ESL) / PE-152 NFC

1.5" Electronic Shelf Label (ESL) / PE-152 NFC
Minimum 10pcs
-
+
Request unit price

We react on your
request in 24 hours

Shipping
worldwide

Printing &
encoding

  • Frequency: 2.4 GHz
  • Key application : Retail, Warehouse,
Have questions about this product? ☎  +358 10 20 80 750

What diversifies the PE-152 from our traditional ESL solution, is the added value of NFC, LED indicators and sound feedback. This enables you to use customer loyalty cards, payment and even pick-to-display solutions. The LED can be used as an indicator for a certain action, to attract attention or to find a product in a warehouse. When you develop a custom-made application, you can add even more functionalities to the Opticon PE-range that gives your customer control of their shopping experience, or you can use the application for your own purposes such as updating content on the e-paper.

Opticon has further refined the ergonomics and aesthetics by removing the need for batteries in this solution to create a slimmer fit to make the shelf look neat and the store making an impact to the consumer. The dedicated power rail supplies continuous power, which makes the PE-range a carefree solution by not having to swop batteries in due time. This smart design taps into modern society and the customer’s wishes. The PE-range creates the ‘wow-experience’ we are all looking for.

Another added value is the easy installment. Within a day, depending on the store size, you are set to go. You simply need the dedicated power rail and accompanying connectors, depending on your shelf system. Opticon facilitates various mounting options, without compromising in shelf space. To provide more insight in the installment and all accessories, we refer you to the brochure on PE-range accessories.

Communication

By using the dedicated Opticon ESL Server software, updating or changing content on the PE-152 is made easy. You can use an Opticon scanning device and scan the barcode on the ESL label, update the information on the scanning device. Now you are ready to send the update to the server using the wireless communication technology of the scanning device.

Applications

The PE-152 is applicable in retail, the pharmaceutical industry and logistics. Any industry that wants to replace the archaic paper labels with digital labels and interact with its users. This is the perfect solution when your aim is to run an efficient business.

Features

  • Compact high resolution display
  • Extremely low power consumption
  • Active NFC reader
  • RGB LED
  • Sound feedback
  • Externally powered via a rail system
SPECIFICATIONS
    PHYSICAL
  • Product:1.5" Electronic Shelf Label (ESL) / PE-152 NFC
  • Dimensions:48.4 x 42.2 x 10.2 mm / 1.9 x 1.66 x 0.4 in
  • Weight:Ca. 30 g / 1.01 oz
    TECHNICAL
  • Frequency:2.4 GHz
  • CPU:8-bit MCU | Clock frequency: 32 MHz
  • Signals & indicators:Number of LEDs: 4 | Buzzer: programmable frequency and volume
  • Communication:Radio transmission speed: up to 250 kbps | Protocol: IEEE 802.15.4 based
  • Display:1.54’’, 152 x 152 pixels (WxH), black and white
  • Memory:Internal ROM: 256 KB | Internal RAM: 8 KB
  • Operating power:Power supply: dedicated power rail, 5~12V | Power consumption: 0.68W per ESL (max.)
  • Regulatory:FCC, RoHS, EN 60950-1, IEC 60950-1, EN55022, EN55024, WEEE
  • Additional:NFC 13.56MHz module installed | Protocols: ISO/IEC 14443A/MIFARE/NTAG
    ENVIRONMENT
  • Relative humidity:20 - 85% (non-condensing)
  • Operating temperature:0 to 40 °C / 32 to 104 °F
  • Storage temperature:-20 to 50 °C / -4 to 122 °F
